Soft-closer for SLID’UP 160, 170, 190
SKU: SU5234
Proud manufacturer of SLID'UP products

Soft-closer for SLID’UP 160, 170, 190

SKU: SU5234

$53.56

  • 5 year warranty
  • Shipped from USA
  • Product can be returned

Download instructions

  • Soft-closer for SLID’UP 160, SLID’UP 170, SLID’UP 190 sliding door hardware.
  • Softly follows the sliding door to its closing position.
  • Best use for sliding partition door, pocket door and glass door.
  • Possible to install 2 soft-closers, one at both end of the track.
  • Easy mounting inside track.
  • Adjustable to door weight. Min. 20 lbs. Max. 180 lbs.
  • 5-year warranty

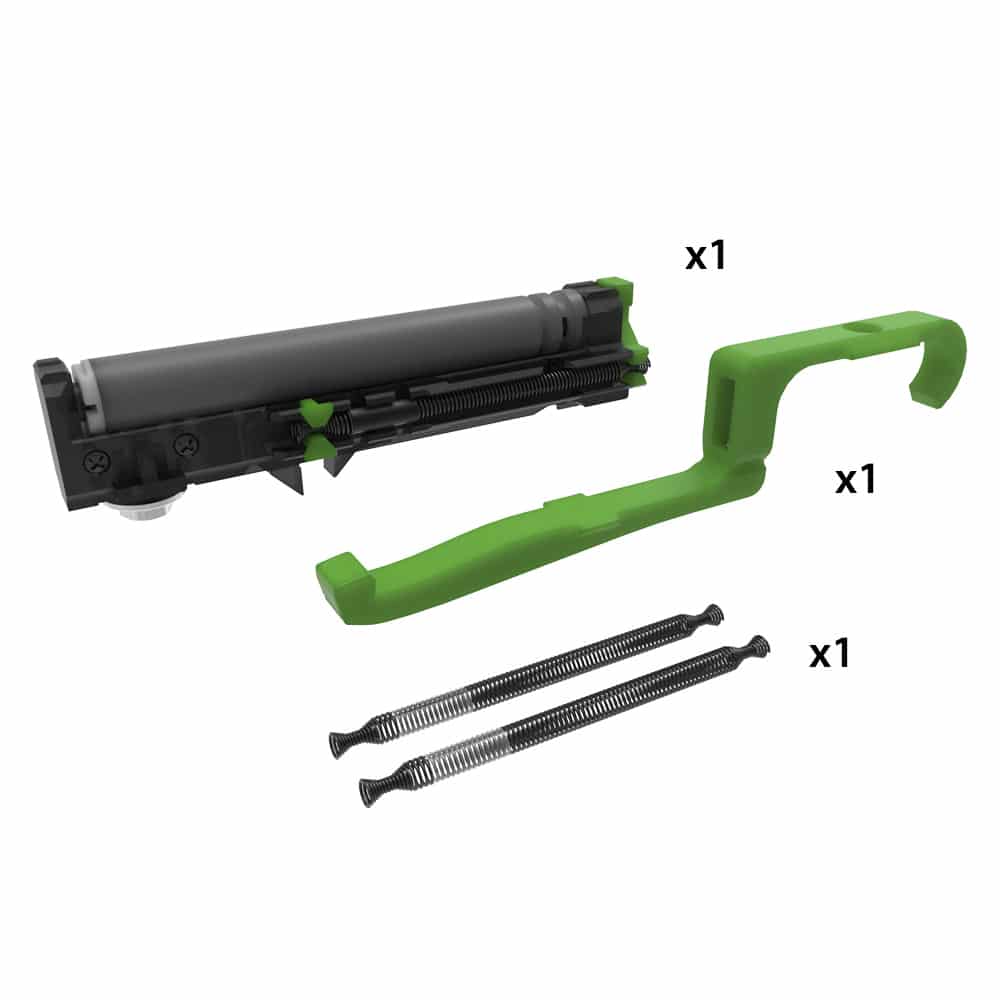

This kit includes:

  • 1 x soft-closer

Optional add-ons and accessories:

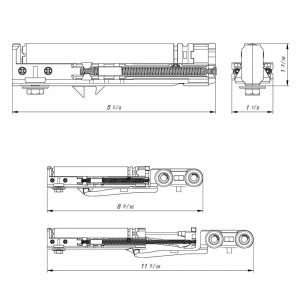

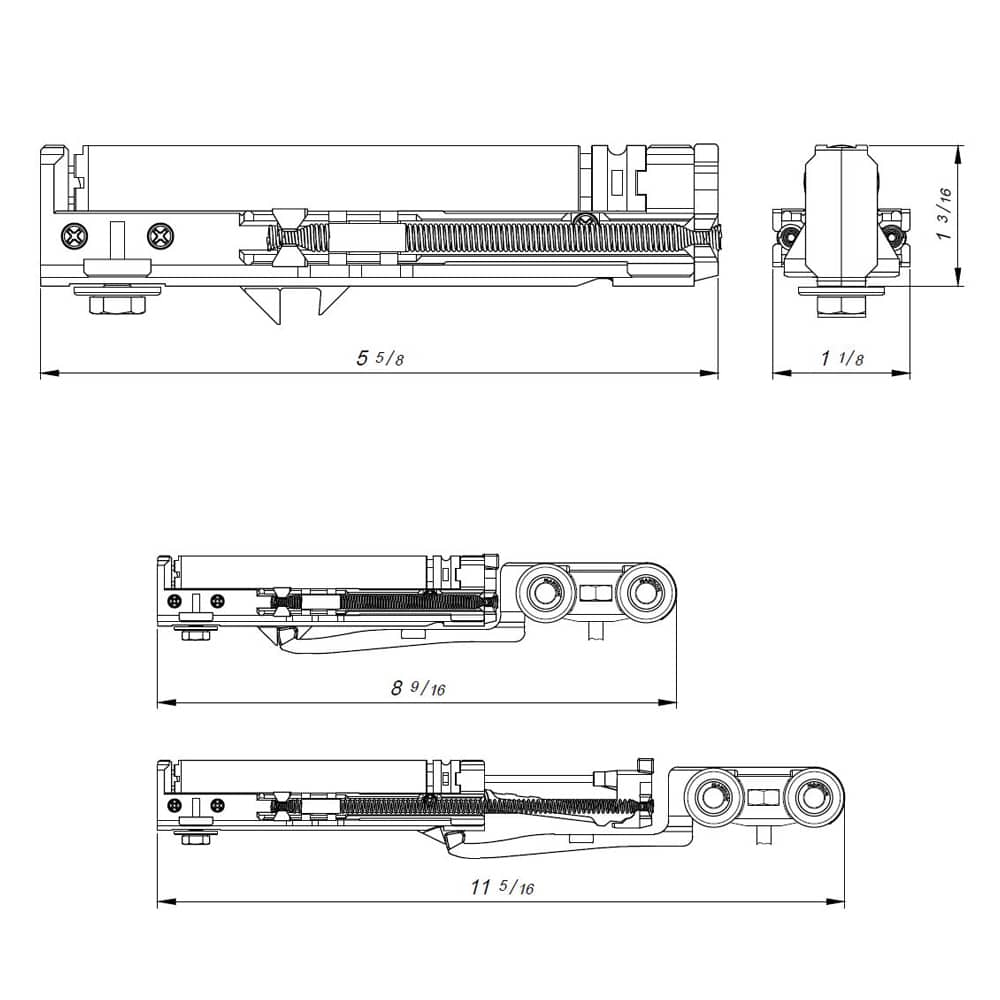

Length 5-1/2"
Width 1-1/8"
Height 1-1/8"
Soft-closer weight 0.44 lbs
Min Door Weight 20 lbs
Max Door Weight 180 lbs
Warranty 5 years
Series SLID'UP 160, SLID'UP 170, SLID'UP 190
Brand SLID'UP by MANTION

I can not install the soft closer SU5234 inside the track.

Verify that there is no fixing screw above the soft closer.

Does the soft closer SU5234 compatible with different door weight?

Yes there are 3 different adjustments in order to adapt to different door weight (from 20lbs to 90lbs, from 90 lbs to 130 lbs, from 130 lbs to 180 lbs).

How many soft-closers do I need?

If you want a soft opening OR a soft closing, you need 1 soft-closer.
If you want a soft opening AND a soft closing, you need 2 soft-closers.

Do I need a longer track if I am using two soft-closers?

No, you do not need a longer track.

Can I install a soft-closer after setting up the sliding system?

The soft-closer must be mounted at the same time than the sliding system.

If I have a synchronization kit for 2 doors, how many soft-closers can I install?

If you want a soft opening OR a soft closing, you need 1 soft-closer.
If you want a soft opening AND a soft closing, you need 2 soft-closers.

Do you have every product in stock?

We normally have every product in stock. If an item is out of stock, we will inform you on the website.

What is the condition of the products?

All of our products are brand new.

Does SLID’UP hardware come with a warranty?

Yes, all our products come with a 5-year warranty.

3.7 | 5

3 review(s)

67% customers recommending this product

66.7%
0%
0%
0%
33.3%
Show the Certificate of Trust
  • For further information on the nature of the review controls, as well as the possibility of contacting the author of the review please consult our GCU.
  • No inducements have been provided for these reviews
  • Reviews are published and kept for a period of five years
  • Reviews can not be modified: If a customer wishes to modify their review then they can do so by contacting Verified Reviews directly to remove the existing review and publish an amended one
  • The reasons for deletion of reviews are available here.
All the reviews
×
×
5/5

Great feature to have for any sliding door. Ensures closure each time with no bounce back that is commonly had with sliding doors.

Ryan M. 27/04/2022 following an order made on 11/04/2022

Reply from SLID'UP Team on 29/04/2022
Thank you very much for your feedback Ryan! SLID'UP Team

Was this review helpful ? Yes 0 No 0

×
1/5

These rails are mounted using flat head countersunk screws. The predrilled holes in the rails are not countersunk which leaves the head of the screws protruding into the roller assembly travel space. This, in turn, blocks all travel of the roller assembly when the soft-close accessory is mounted to it, making the soft-closer unusable. Wasted $40.00.

MICHAEL L. 20/01/2022 following an order made on 29/12/2021

Reply from SLID'UP Team on 25/01/2022
Thank you for your feedback Michael. This is the first time we have this type of feedback. We do not provide screws for the track fixing because the type of surface depends on each customers. The screws included in the kit are for the plates, not for the track. Our SLID’UP 170 track is manufactured with a small groove the leave space for the rollers and soft-closers. On page 2 of the soft-closer installation guide, you can find information about what to do with the screws that will be above the soft-close. Do not hesitate to contact our customer service at contact.us@slidup.com or +1 (866) 626-8466 if you need further information. SLID’UP Team.

Was this review helpful ? Yes 0 No 0

×
5/5

I used 4, one on in each end of a 2 tracks, for bypass barn doors. They work great and perform consistently. They are a little snug, so I had to countersink the track in order to insert the soft close mechanism past the screws.

Anonymous A. 04/01/2021 following an order made on 16/12/2020

Reply from SLID'UP Team on 01/01/1970
Thank you for your feedback Michael! SLID'UP Team

Was this review helpful ? Yes 0 No 0
