SLID’UP 190 – Sliding glass door hardware kit

• Premium sliding glass door track system SLID’UP 190 for 1 glass door – 78″ wide track.
• Ready-to-install kit including sliding track and parts for wall mounting.
• Easy to install and long lasting. Fluid motion through smooth and silent ball bearing rollers. Smart clamp system avoids drilling glass. Perfet for glass pocket door too. Convenient: no floor track.
• Max. opening width = 78″ (2 m).
• Max. door width = 39″ (1 m).
• For door thickness = 5/16″ to 1/2″ (8 to 12 mm).

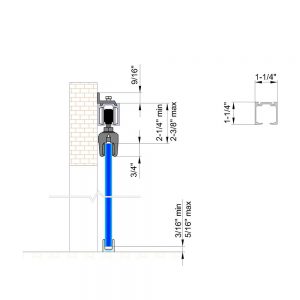

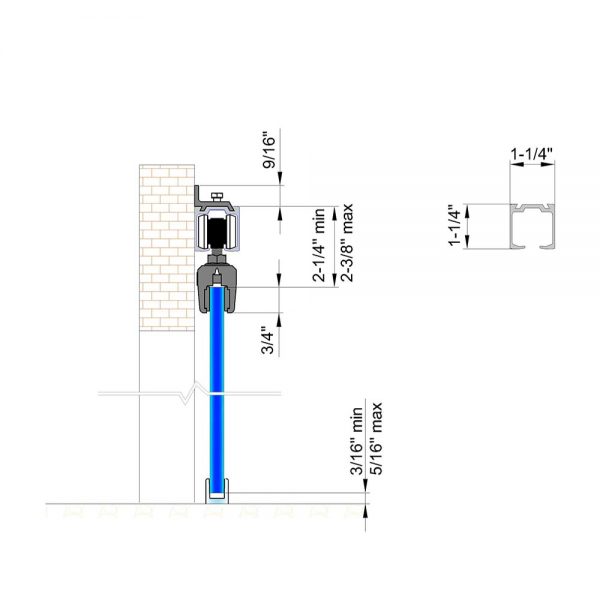

• Track height = 1-1/4″ (33 mm). Track width = 1-1/4″ (33 mm).
• Max. door capacity = 220 lbs (100 kg).

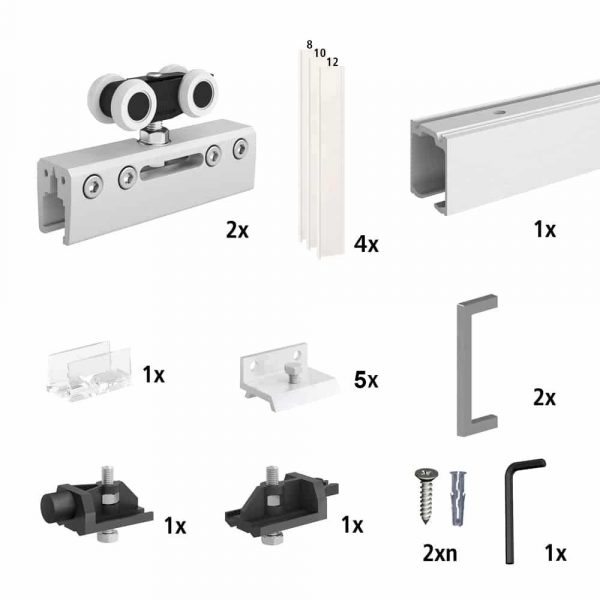

This kit includes:

• 1 x 78″ wide aluminum track
• 2 x clamp rollers
• 2 x door stoppers (inside track set-up)
• 5 x wall mount brackets
• 1 x adjustable bottom guide
• 2 x adhesive handles
• 12 x mount shims
• Screws and assembly instructions

This kit does NOT include:

• Door(s)
• Optional products and accessories

Optional products and accessories:

• Soft close mechanism for SLID’UP 190: see SU5234
• Sliding glass door rollers kit SLID’UP 190 for 1 extra door: see SU5209
• Clip on aluminum fascia cover for SLID’UP 190: see SU5145 and SU5143
• Aluminum sliding track for SLID’UP 190
• Align 2 tracks together with rail connector bracket SU5242
• Sliding glass door handles: see SU5245
• Sliding door handles, finger pulls, brush seals, mortise locks, wardrobe lifts and more
