Cierre suave para SLID’UP 160, 170, 190
$53.56
- 5 años de garantía
- Enviado desde EE. UU.
- El producto puede ser devuelto
Descargar las instrucciones
- Cierre suave para los herrajes de puertas correderas SLID’UP 160, SLID’UP 170, SLID’UP 190.
- Acompaña suavemente a la puerta corredera hasta su posición de cierre.
- Se usa mejor con la puerta corredera divisoria, la puerta de bolsillo y la puerta de vidrio.
- Posibilidad de instalar 2 cierres suaves, uno en cada extremo del riel.
- Fácil montaje en el interior del riel.
- Ajustable al peso de la puerta. Mínimo 20 lbs. Máximo 180 lbs.
- Garantía de 5 años.
Este kit incluye:

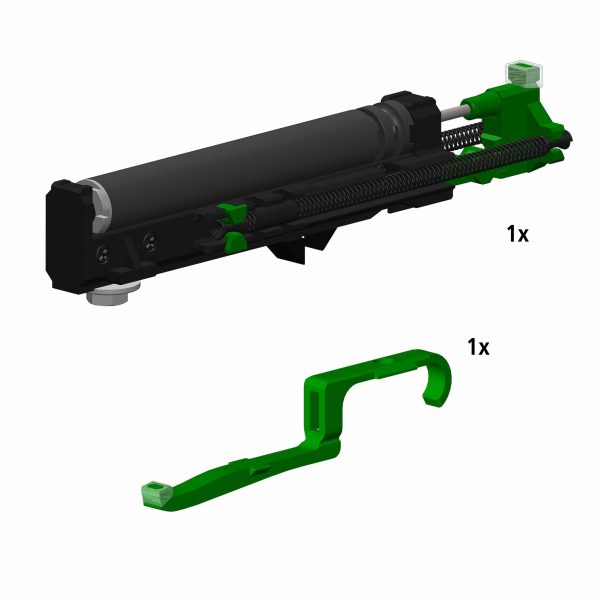

- 1 x cierre suave
Complementos y accesorios opcionales:
- Kits completos SLID’UP 160, SLID’UP 170, SLID’UP 190
- Riel de aluminio para puertas correderas SLID’UP 160, 170 y 190
- Kit de rodillos para puertas correderas para SLID’UP 160 (SU5208)
- Kit de rodillos para puertas correderas para SLID’UP 170 (SU5136)
- Kit de rodillos para puertas correderas para SLID’UP 190 (SU5209)
- Tiradores para puertas correderas, tiradores rasantes, sellos de cepillo, cerraduras de embutir, elevadores de armarios y más
No puedo instalar el cierre suave SU5234 dentro del riel.
Compruebe que no hay ningún tornillo de fijación por encima del cierre suave.
¿Es el cierre suave SU5234 compatible con diferentes pesos de puerta?

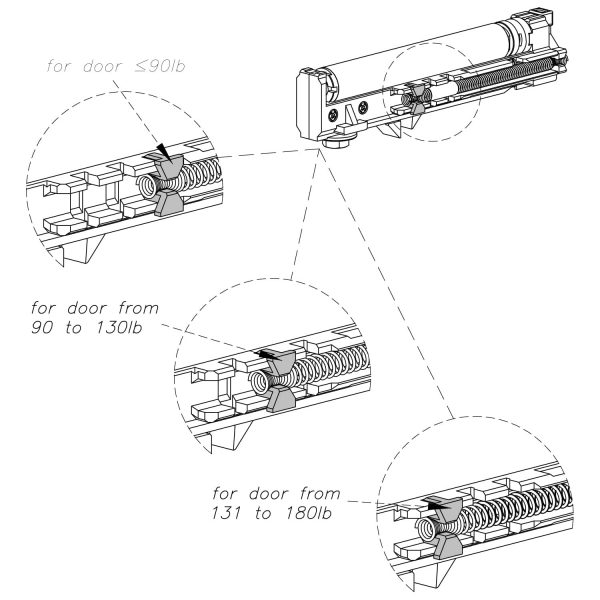

Sí, hay 3 ajustes diferentes para adaptarse a los distintos pesos de las puertas (de 20 lbs a 90 lbs, de 90 lbs a 130 lbs, de 130 lbs a 180 lbs).
¿Cuántos cierres suaves necesito?
Si desea una apertura suave O un cierre suave, necesita 1 cierre suave.
Si desea una apertura suave Y un cierre suave, necesita 2 cierres suaves.
¿Necesito un riel más largo si utilizo dos cierres suaves?
No, no lo necesita.
¿Puedo instalar un cierre suave después de montar el sistema de deslizamiento?
El cierre suave debe montarse al mismo tiempo que el sistema de deslizamiento.
Si tengo un kit de sincronización para 2 puertas, ¿cuántos cierres suaves puedo instalar?
Si desea una apertura suave O un cierre suave, necesita 1 cierre suave.
Si desea una apertura suave Y un cierre suave, necesita 2 cierres suaves.
¿Tienen todos los productos en stock?
Normalmente tenemos todos los productos en stock. Si un artículo está agotado, le informaremos en el sitio web.
¿En qué estado se encuentran los productos?
Todos nuestros productos son nuevos.
¿Los herrajes SLID'UP tienen garantía?
Sí, todos nuestros productos tienen una garantía de 5 años.
Todas las opiniones
|
1/5
Returned, poor instructions, changes length of rail you need. Tim F. 03/10/2022 tras la compra hecha el 18/08/2022 Respuesta de SLID'UP Team el 04/10/2022 I am sorry about your disapointment Tim but having soft-closers should not change your track length. As mentionned on the installation guide, you need to place the plates and rollers at around 6" from the side of the door vs 2" without soft-closers. SLID'UP Team 5/5
Great feature to have for any sliding door. Ensures closure each time with no bounce back that is commonly had with sliding doors. Ryan M. 27/04/2022 tras la compra hecha el 11/04/2022 Respuesta de SLID'UP Team el 29/04/2022 Thank you very much for your feedback Ryan! SLID'UP Team 1/5
These rails are mounted using flat head countersunk screws. The predrilled holes in the rails are not countersunk which leaves the head of the screws protruding into the roller assembly travel space. This, in turn, blocks all travel of the roller assembly when the soft-close accessory is mounted to it, making the soft-closer unusable. Wasted $40.00. Anonymous A. 20/01/2022 tras la compra hecha el 29/12/2021 Respuesta de SLID'UP Team el 01/01/1970 Thank you for your feedback Michael. This is the first time we have this type of feedback. We do not provide screws for the track fixing because the type of surface depends on each customers. The screws included in the kit are for the plates, not for the track. Our SLID’UP 170 track is manufactured with a small groove the leave space for the rollers and soft-closers. On page 2 of the soft-closer installation guide, you can find information about what to do with the screws that will be above the soft-close. Do not hesitate to contact our customer service at contact.us@slidup.com or +1 (866) 626-8466 if you need further information. SLID’UP Team. 5/5
I used 4, one on in each end of a 2 tracks, for bypass barn doors. They work great and perform consistently. They are a little snug, so I had to countersink the track in order to insert the soft close mechanism past the screws. Anonymous A. 04/01/2021 tras la compra hecha el 16/12/2020 Respuesta de SLID'UP Team el 01/01/1970 Thank you for your feedback Michael! SLID'UP Team |
