Synchronization kit for bi-parting doors for SLID’UP 160, 170

Add to cart

Proud manufacturer of SLID'UP products

Synchronization kit for bi-parting doors for SLID’UP 160, 170

SKU: SU5232

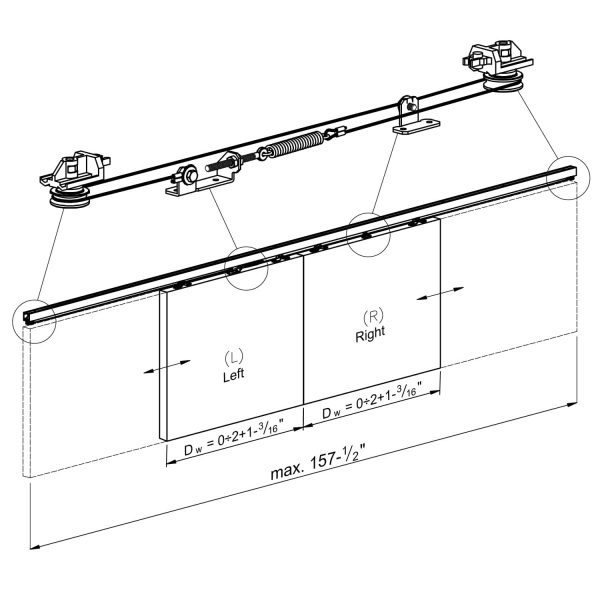

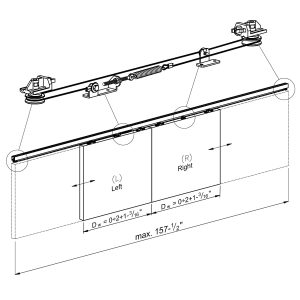

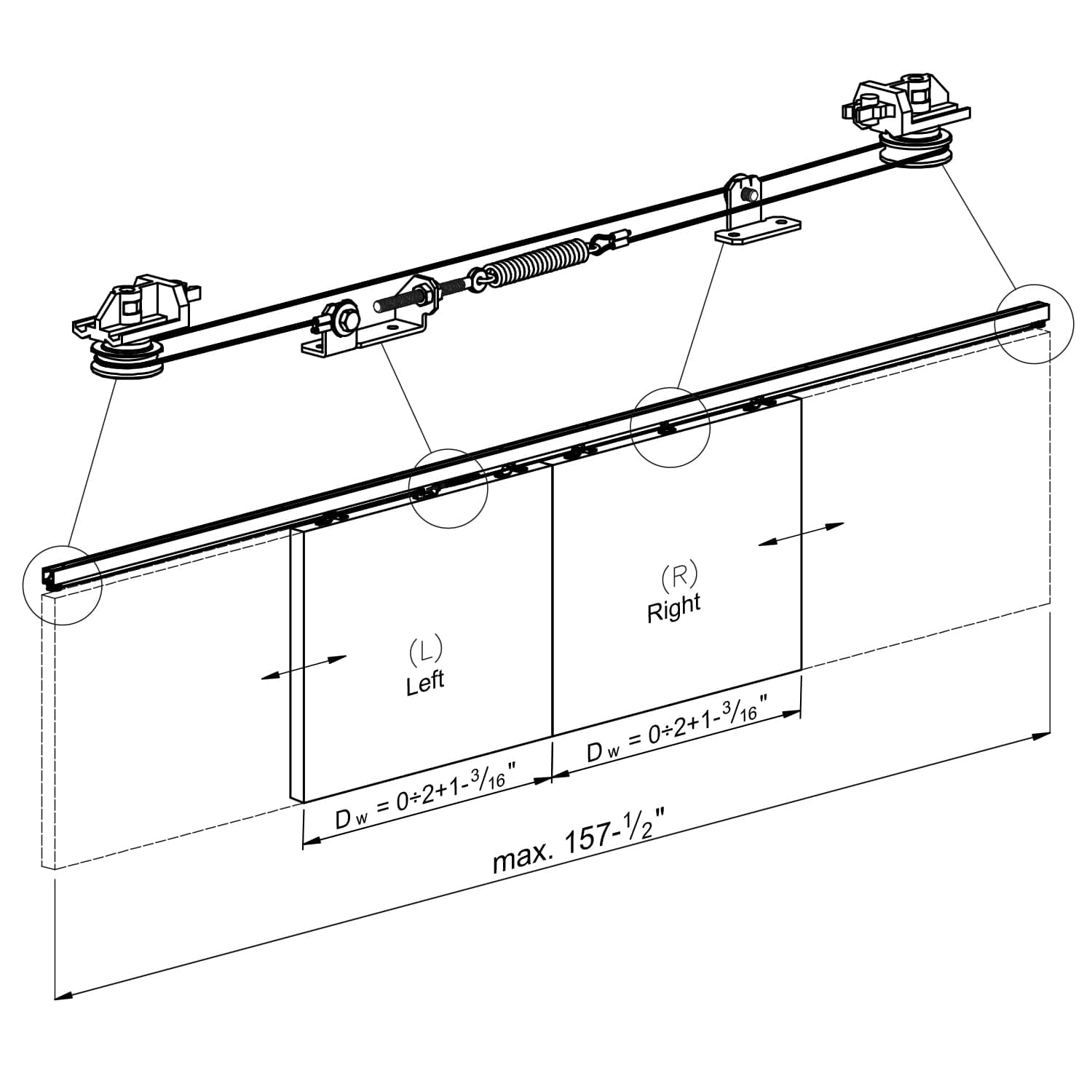

Drawing with dimensions of our synchronization kit for SLID'UP 160 and 170

Download instructions

Installation guide

Proud manufacturer of SLID'UP products

Synchronization kit for bi-parting doors for SLID’UP 160, 170

SKU: SU5232

$30.52

5 year warranty
Shipped from USA
Product can be returned

2 review(s)

Download instructions

Installation guide

To open or close 2 doors simultaneously
Only compatible with SLID’UP 160 and SLID’UP 170 sliding door hardware.
Maximum weight per door: 130 lbs
5-year warranty

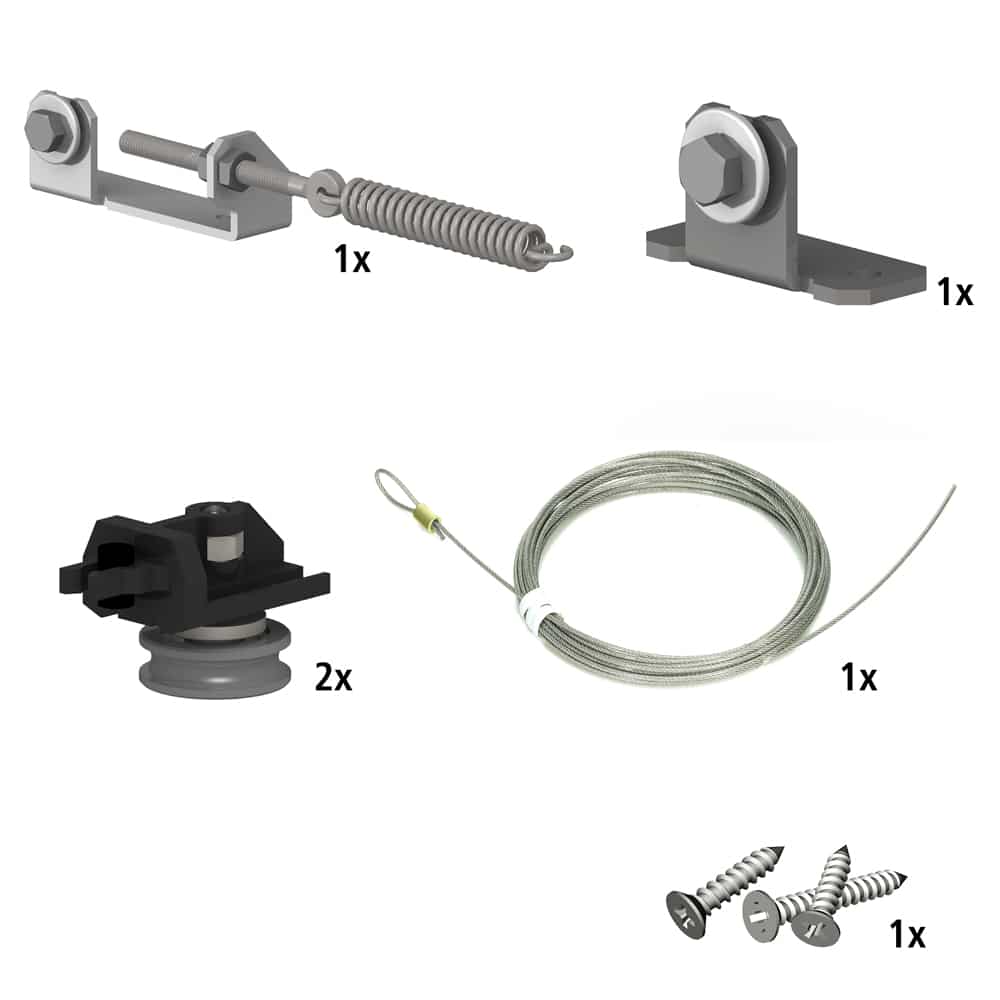

This kit includes:

1 x cable – 26′
1 x fixing plate with spring
1 x driving angle plate
2 x assembled pulleys
Screws and instructions

Maximum opening width 13'

Number of doors 2

Max weight per door 130 lbs

Warranty 5 years

Best use for Sliding partition doors

Series SLID'UP 160, SLID'UP 170

Brand SLID'UP by MANTION

Can I install soft-closers with a synchronization kit? If yes, how many?

Yes it is possible to install soft-closers with a synchronization kit.
If you want a soft closing for your 2 doors, 1 soft-closer is required.
If you want a soft opening and a soft closing for your 2 doors, 2 soft-closers are required.

Can I install a synchronization kit after setting up the sliding system and the door?

It is better to install the synchronization kit at the same time than the sliding system. However, if the track is fully accessible, it is possible to install a synchronization kit later.

Do you have every product in stock?

We normally have every product in stock. If an item is out of stock, we will inform you on the website.

What is the condition of the products?

All of our products are brand new.

Does SLID’UP hardware come with a warranty?

Yes, all our products come with a 5-year warranty.
