Proud manufacturer of SLID'UP products
Connectable track for SLID’UP 1000, 2500
SKU: SU5018
Proud manufacturer of SLID'UP products

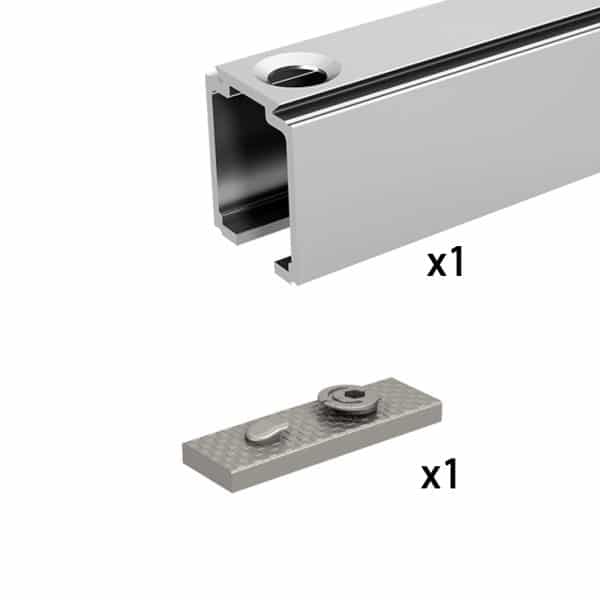

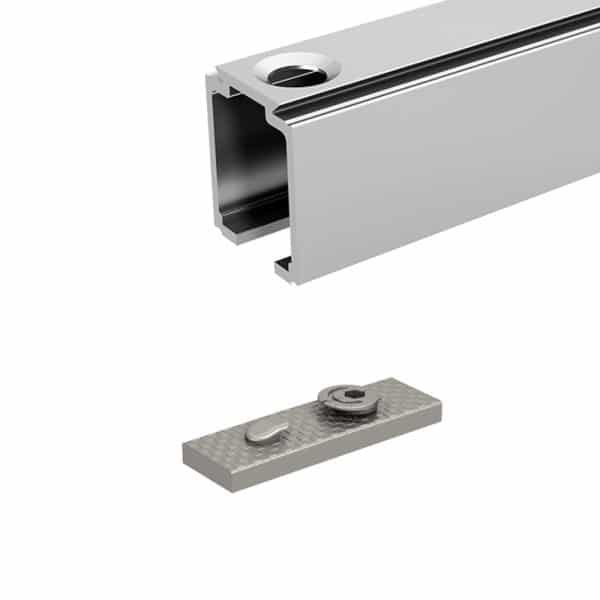

Connectable track for SLID’UP 1000, 2500

SKU: SU5018


  • 5 year warranty
  • Shipped from USA
  • Product can be returned
  • Easy to recut
  • Spanners included
  • Door not included

Download instructions

Optional add-ons and accessories:


  • Soft-closer for doors from 22 lbs to 45 lbs for SLID’UP 1000 (SU2218)
  • Soft-closer for doors from 46 lbs to 130 lbs for SLID’UP 1000 (SU2212)
  • Hydraulic soft stopper for doors from 45 to 180 lbs for SLID’UP 1000 (SU5029)
  • Synchronization kit for SLID’UP 1000 (SU5030)
  • Kit for an additional door for SLID’UP 1000 (SU1006)
  • Valance for ceiling mounting for SLID’UP 1000 (SU5012)
  • Valance for wall mounting for SLID’UP 1000 (SU5009)
  • Polyamide bottom guide for SLID’UP 1000 (SU2213)
  • Wall mounting bracket for door thickness up to 1-5/8″ for SLID’UP 1000 (SU5027)


Made in France

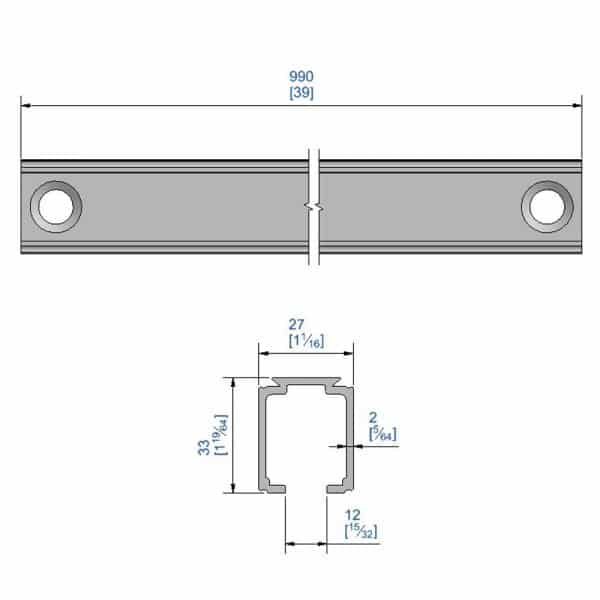

Track length 39"
Track height 1-5/16"
Track width 1-1/16"
Max weight per door 180 lbs
Track material Anodized aluminum
Best use for Wooden sliding partition doors
Warranty 5 years
Mounting type Wall mount, Ceiling mount, Recessed / Concealed
Range SLID'UP 1000, SLID'UP 2500

Do you have every product in stock?

We normally have every product in stock. If an item is out of stock, we will inform you on the website.

Can the tracks and valances be cut to size?

Yes, all our tracks and valences can be cut to size. You can use a metal saw to do it.

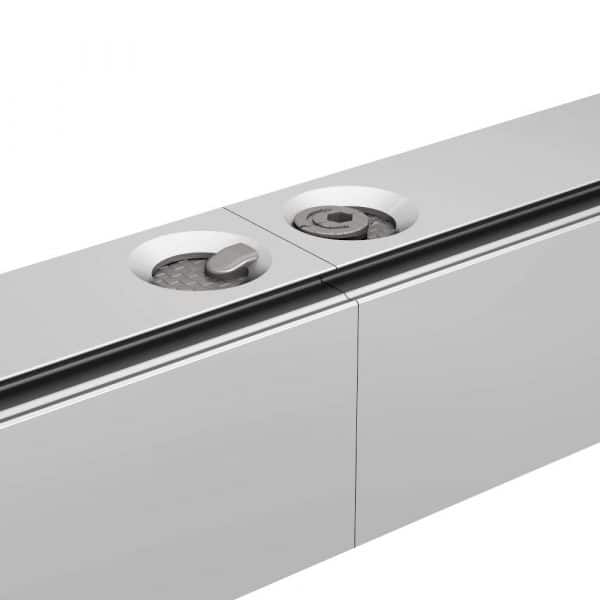

Can I align multiple tracks to increase the overall length?

Yes absolutely! You can align as many tracks as you need.

Can I install bypass doors with a wall mounted set-up?

Yes, but you need to make sure to use double brackets to mount two tracks in parallel. Please refer to the product description to figure out how many brackets are needed (if possible for the range selected).
You can also make your own brackets.

How many soft-closers do I need?

If you want a soft opening OR a soft closing, you need 1 soft-closer.
If you want a soft opening AND a soft closing, you need 2 soft-closers.

Do I need a longer track if I am using two soft-closers?

No, you do not need a longer track.

Do I need a longer track if I am using two soft-closers?

No, you do not need a longer track.

Do you offer more color options for tracks and valances?

All tracks and valences are silver. However, you do have the ability to paint them. We advise you use a high quality paint.

What is the condition of the products?

All of our products are brand new.

For a wall-mounting, do I need to purchase any additional items than what is included in your kit?

Our kits include everything for a ceiling mounting. If you want to do a wall-mounting, you will need to add wall-mounting brackets that are sold separately. You can find our wall-mounting brackets here:

Is there a maximum weight for a sliding door?

Yes, it depends on the sliding door hardware. Before purchasing one, make sure that your door respects the maximum door weight indicated on the product specification sheet.

What is the rail SLID'UP 1000, 2500 made of?

The rail SLID’UP 1000, 2500 is made of anodized aluminum.

What are the dimensions of your tracks?

Our track range from 39″ to 106″. On each product sheet, you can find all the track dimensions available for each range. Our tracks are recuttable and can be aligned to obtain a longer track.

Does SLID’UP hardware come with a warranty?

Yes, all our products come with a 5-year warranty.
