Soft closer for SLID’UP 160, 170, 190
SKU: SU5477
Proud manufacturer of SLID'UP products

Soft closer for SLID’UP 160, 170, 190

SKU: SU5477

$63.02

  • 5 year warranty
  • Shipped from Canada
  • Product can be returned

Download instructions

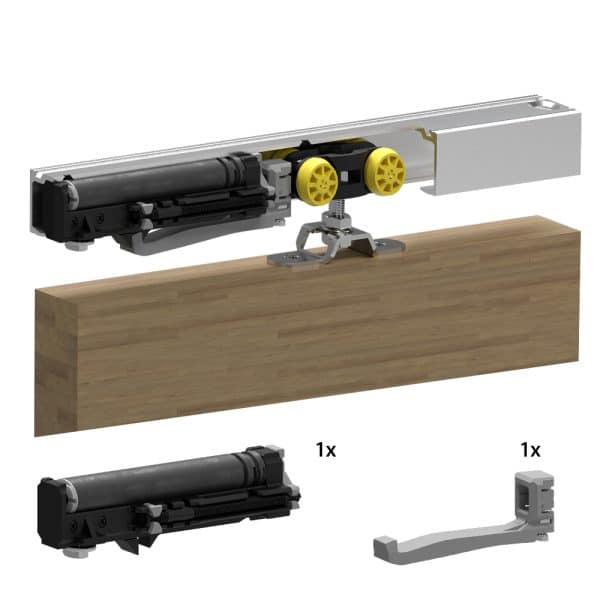

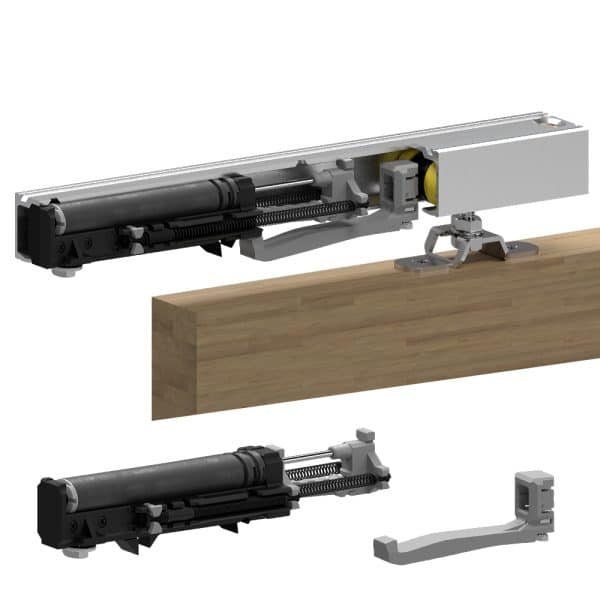

  • Soft-closer for SLID’UP 160, SLID’UP 170, SLID’UP 190 sliding door hardware.
  • Softly follows the sliding door to its closing position.
  • Best use for sliding partition door, pocket door and glass door.
  • Possible to install 2 soft-closers, one at both end of the track.
  • Easy mounting inside track.
  • Door weight requirements: Min. 90 lbs. Max. 175 lbs.
  • Adjustable to door weight for doors: 90lbs, up to 130 lbs and up to 175 lbs.
  • For lighter doors, use the SU5478 soft-closer with an additional spring.
  • 5-year warranty

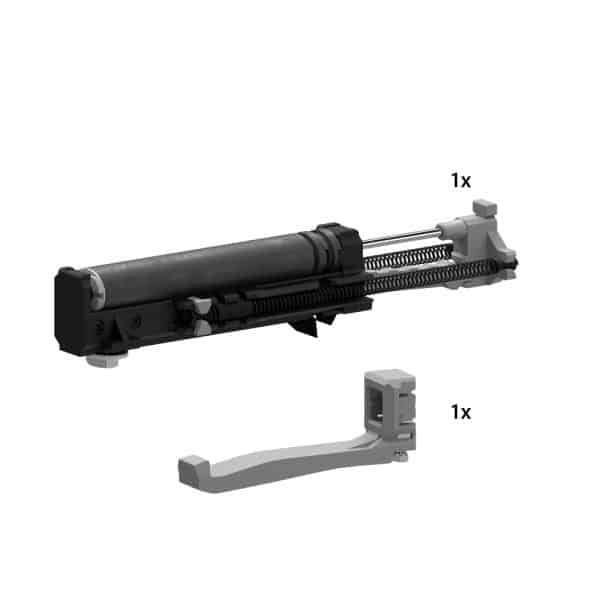

This kit includes:

  • 1 x soft-closer

Optional add-ons and accessories:

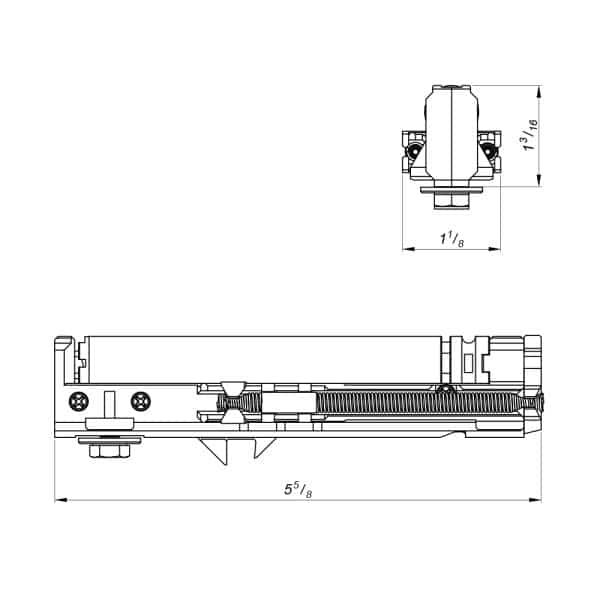

Length 5-5/8"
Width 1-1/8"
Height 1-3/16"
Min door weight 90 lbs
Max door weight 175 lbs
Warranty 5 years
Range SLID'UP 160, SLID'UP 170, SLID'UP 190
Brand SLID'UP by MANTION

I can not install the soft closer SU5477 inside the track.

Verify that there is no fixing screw above the soft closer.

Does the soft closer SU5477 compatible with different door weight?

Yes there are 3 different adjustments in order to adapt to different door weight (up to 90 lbs, up to 130 lbs and up to 175 lbs).

How many soft-closers do I need?

If you want a soft opening OR a soft closing, you need 1 soft-closer.
If you want a soft opening AND a soft closing, you need 2 soft-closers.

Do I need a longer track if I am using two soft-closers?

No, you do not need a longer track.

Can I install a soft-closer after setting up the sliding system?

The soft-closer must be mounted at the same time than the sliding system.

If I have a synchronization kit for 2 doors, how many soft-closers can I install?

If you want a soft opening OR a soft closing, you need 1 soft-closer.
If you want a soft opening AND a soft closing, you need 2 soft-closers.
