Bi-parting synchronization kit for SLID’UP 160 & 170
SKU: SU5232

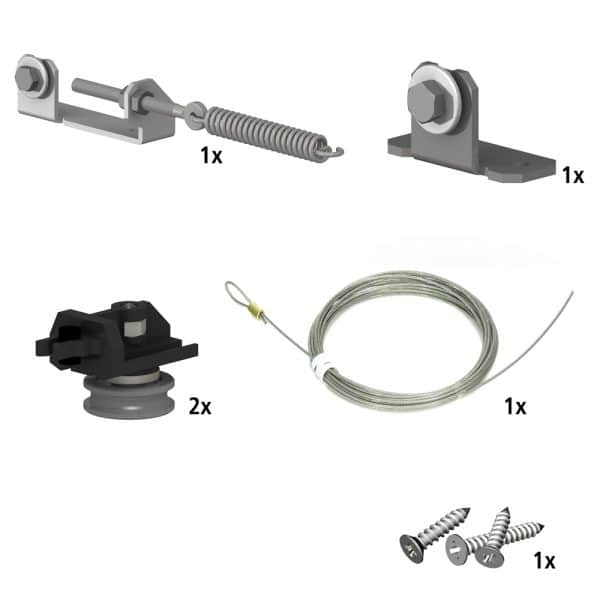

Quantity of items in our synchronization kit for SLID’UP 160, 170

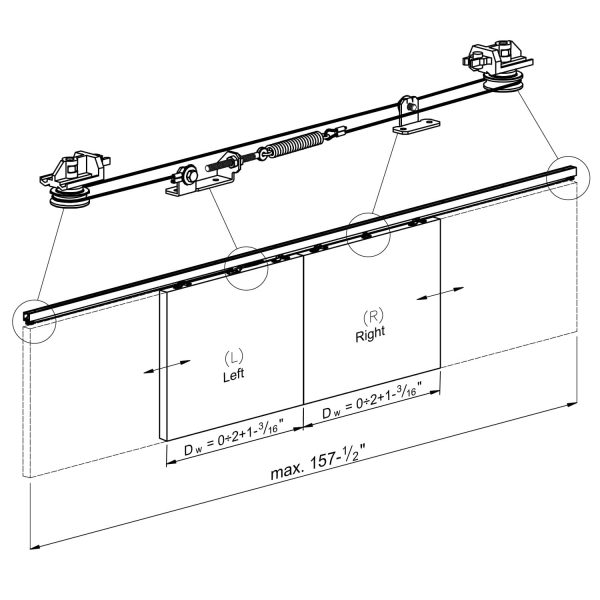

Drawing with dimensions of our synchronization kit for SLID'UP 160 and 170
Quantity of items in our synchronization kit for SLID’UP 160, 170

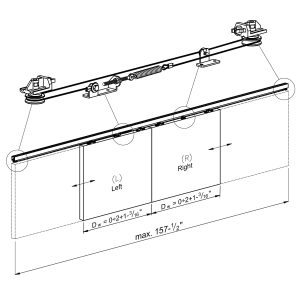

Drawing with dimensions of our synchronization kit for SLID'UP 160 and 170

Download instructions

Proud manufacturer of SLID'UP products

Bi-parting synchronization kit for SLID’UP 160 & 170

SKU: SU5232

$38.39

  • 5 year warranty
  • Shipped from Canada
  • Product can be returned

Download instructions

Technical specifications:

  • Minimum opening width: 26″
  • Maximum opening width: 76″
  • Maximum weight per panel: 130 lbs with SLID’UP 160 and 260 lbs with SLID’UP 170

Warranty:

  • 5-year warranty

This kit includes:

  • 1 x cable – 26′
  • 1 x fixing plate with spring
  • 1 x driving angle plate
  • 2 x assembled pulleys
  • Screws and instructions

Recommended sets for 2 panels up to 130 lbs each:

26″ to 28″ door opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 160 – 60″ hardware kit (SU5570)
  • 1 x Extra door rollers kit for SLID’UP 160 (SU5208A)

If wall mounted:

  • 4 x wall mounting brackets for SLID’UP 160 (SU5233)

32″ to 34″ door opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 160 – 72″ hardware kit (SU5571)
  • 1 x Extra door rollers kit for SLID’UP 160 (SU5208A)

If wall mounted:

  • 5 x wall mounting brackets for SLID’UP 160 (SU5233)

37″ to 39″ door  opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 160 – 78″ hardware kit (SU5128)
  • 1 x Extra door rollers kit for SLID’UP 160 (SU5208A)

If wall mounted:

  • 5 x wall mounting brackets for SLID’UP 160 (SU5233)

46″ to 48″ door opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 160 – 96″ hardware kit (SU5572)
  • 1 x Extra door rollers kit for SLID’UP 160 (SU5208A)

If wall mounted:

  • 6 x wall mounting brackets for SLID’UP 160 (SU5233)

49″ to 51″ door opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 160 – 106″ hardware kit (SU9801)
  • 1 x Extra door rollers kit for SLID’UP 160 (SU5208A)

If wall mounted:

  • 7 x wall mounting brackets for SLID’UP 160 (SU5233)

56″ to 58″ door opening:

  • 1 x synchronisation kit
  • 2 x SLID’UP 160 – 60″ hardware kit (SU5570)

If wall mounted:

  • 8 x wall mounting brackets for SLID’UP 160 (SU5233)
  • 1 x connector bracket to join 2 tracks end-to-end for SLID’UP 160 (SU5243)

68″ to 70″ door opening:

  • 1 x synchronisation kit
  • 2 x SLID’UP 160 – 72″ hardware kit (SU5571)

If wall mounted:

  • 10 x wall mounting brackets for SLID’UP 160 (SU5233)
  • 1 x connector bracket to join 2 tracks end-to-end for SLID’UP 160 (SU5243)

74″ to 76″ door opening:

  • 1 x synchronisation kit
  • 2 x SLID’UP 160 – 78″ hardware kit (SU5128)

If wall mounted:

  • 10 x wall mounting brackets for SLID’UP 160 (SU5233)
  • 1 x connector bracket to join 2 tracks end-to-end for SLID’UP 160 (SU5243)

Recommended sets for 2 panels up to 260 lbs each:

26″ to 28″ door opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 170 – 59″ hardware kit (SU5131)
  • 1 x Extra door rollers kit for SLID’UP 170 (SU5136A)

If wall mounted:

  • 4 x wall mounting brackets for SLID’UP 170 (SU5233)

35″ to 37″ door opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 170 – 78″ hardware kit (SU5133)
  • 1 x Extra door rollers kit for SLID’UP 170 (SU5136A)

If wall mounted:

  • 5 x wall mounting brackets for SLID’UP 170 (SU5233)

43″ to 45″ door opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 170 – 94″ hardware kit (SU5134)
  • 1 x Extra door rollers kit for SLID’UP 170 (SU5136A)

If wall mounted:

  • 6 x wall mounting brackets for SLID’UP 170 (SU5233)

49″ to 51″ door opening:

  • 1 x synchronisation kit
  • 1 x SLID’UP 170 – 106″ hardware kit (SU9802)
  • 1 x Extra door rollers kit for SLID’UP 170 (SU5136A)

If wall mounted:

  • 7 x wall mounting brackets for SLID’UP 170 (SU5233)

55″ to 57″ door opening:

  • 1 x synchronisation kit
  • 2 x SLID’UP 170 – 59″ hardware kit (SU5131)

If wall mounted:

  • 8 x wall mounting brackets for SLID’UP 170 (SU5233)
  • 1 x connector bracket to join 2 tracks end-to-end for SLID’UP 170 (SU5243)

74″ to 76″ door opening:

  • 1 x synchronisation kit
  • 2 x SLID’UP 170 – 78″ hardware kit (SU5133)

If wall mounted:

  • 10 x wall mounting brackets for SLID’UP 170 (SU5233)
  • 1 x connector bracket to join 2 tracks end-to-end for SLID’UP 170 (SU5243)
Minimum opening width 24"
Maximum opening width 76"
Number of doors 2
Max weight per door with SLID'UP 160 130 lbs
Max weight per door with SLID'UP 170 260 lbs
Warranty 5 years
Best use for Sliding partition doors
Series SLID'UP 160, SLID'UP 170
Brand SLID'UP by MANTION

Can I install soft-closers with a synchronization kit? If yes, how many?

Yes it is possible to install soft-closers with a synchronization kit.
If you want a soft closing for your 2 doors, 1 soft-closer is required.
If you want a soft opening and a soft closing for your 2 doors, 2 soft-closers are required.

Can I install a synchronization kit after setting up the sliding system and the door?

It is better to install the synchronization kit at the same time than the sliding system. However, if the track is fully accessible, it is possible to install a synchronization kit later.

Do you have every product in stock?

We normally have every product in stock. If an item is out of stock, we will inform you on the website.

What is the condition of the products?

All of our products are brand new.

Does SLID’UP hardware come with a warranty?

Yes, all our products come with a 5-year warranty.
